| Accuracy Class |
OIML R60 and NTEP |
| Maximum Load Cell Verification Intervals (nLC) |
C3 / 5,000 |
| Maximum Capacity (Emax) (kg) |
3, 5, 7, 10, 15, 20, 30, 50, 75, 100, 150, 200 |
| Minimum Load Cell Verification Internal (Vmin) |
0.02% of Cn |
| Reference Max Platform Size |
400x450mm |
| Weight |
Approx. 0.4kg |
| Sensitivity (Cn) |
2±10% mV/V |
| Zero Balance |
±0.06 mV/V |
| Temperature Effect on Sensitivity (TKc) |
<±0.0012% of Cn/k |
| Temperature Effect on Zero Balance (TKo) |
<±0.0040% of Cn/k |
| Non-Linearity (Dlin) |
<±0.017% |
| Repeatability (Drep) |
<±0.017% |
| Hysteresis Error (Dhy) |
<±0.017% |
| Creep (dDR) in 30 min |
<±0.023% |

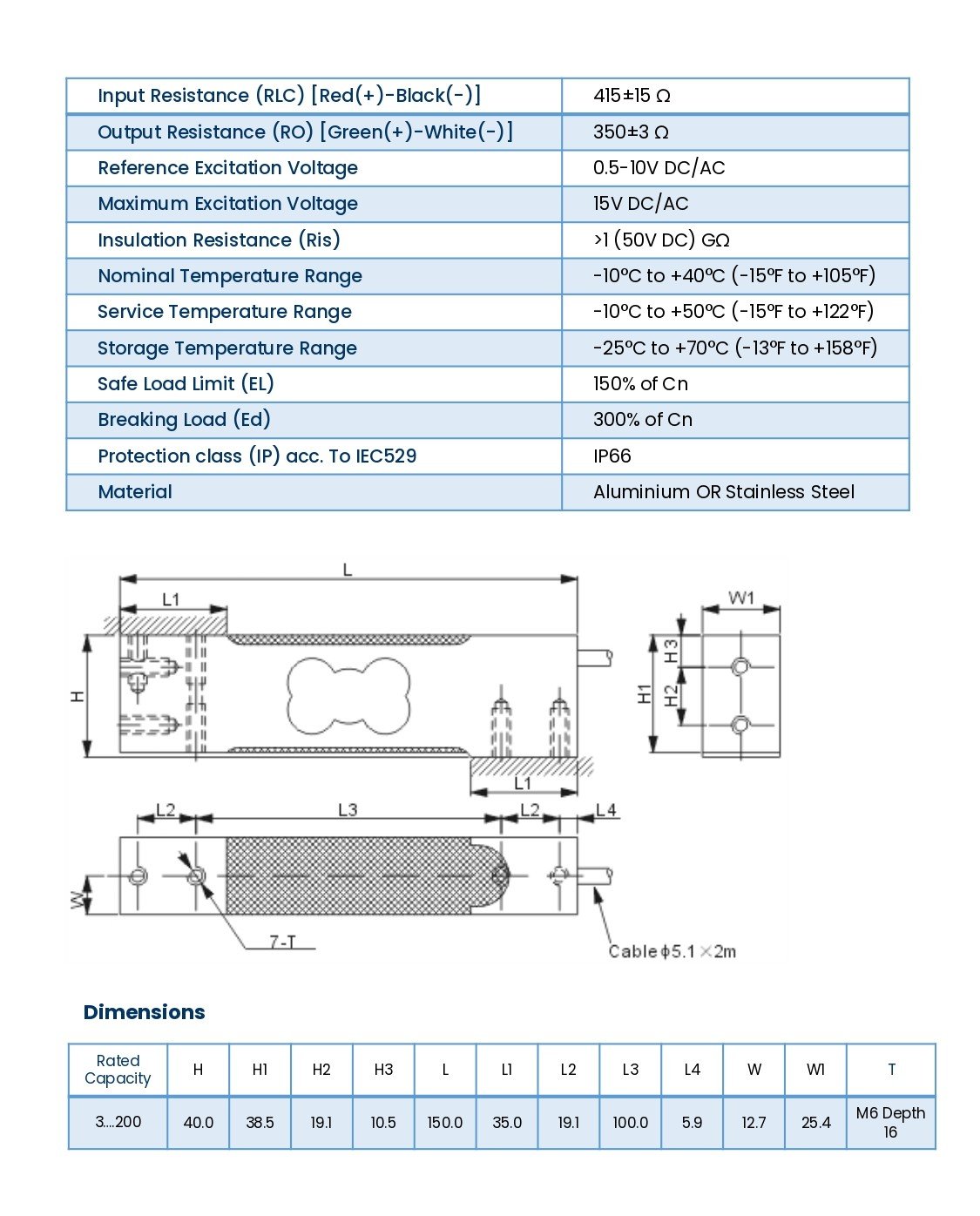

| Input Resistance (RLC) |
415 ± 15 Ω |
| Output Resistance (RO) |
350 ± 3 Ω |
| Reference Excitation Voltage |
0.5 - 10V DC/AC |
| Maximum Excitation Voltage |
15V DC/AC |
| Insulation Resistance (Ris) |
>1 GΩ (50V DC) |
| Nominal Temperature Range |
-10°C to +40°C |
| Service Temperature Range |
-10°C to +50°C |
| Storage Temperature Range |
-25°C to +70°C |
| Safe Load Limit (EL) |
150% of Cn |
| Breaking Load (Ed) |
300% of Cn |
| Protection Class (IP) |
IP66 |
| Material |
Aluminium OR Stainless Steel |
