| Model |

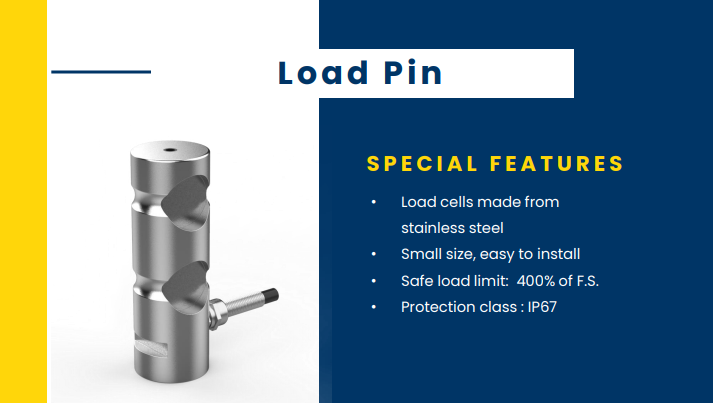

LP |
| Rated Load Capacity |
2, 5, 10, 20, 40, 70 tonne |
| Sensitivity |
1±10% mV/V |
| Zero Balance |
±0.05 mV/V |
| Temperature Effect on Sensitivity |
<±0.02% of FS |
| Temperature Effect on Zero Balance |
<±0.02% of FS |
| Non-Linearity |
<±0.5% |
| Repeatability |
<±0.3% |
| Hysteresis |
<±0.5% |
| Creep (30 Minutes) |
<±0.2% |
| Input Resistance |
400 ± 25 Ohms (Red+, Black-) |
| Output Resistance |
350 ± 3 Ohms (Green+, White-) |
| Reference Excitation Voltage |
0.5 – 10V DC |
| Maximum Excitation Voltage |
15V DC/AC |
| Insulation Resistance |
>2 GΩ (50V DC) |
| Nominal Temperature Range |
-10°C to +40°C |
| Service Temperature Range |
-30°C to +70°C |
| Storage Temperature Range |
-50°C to +85°C |

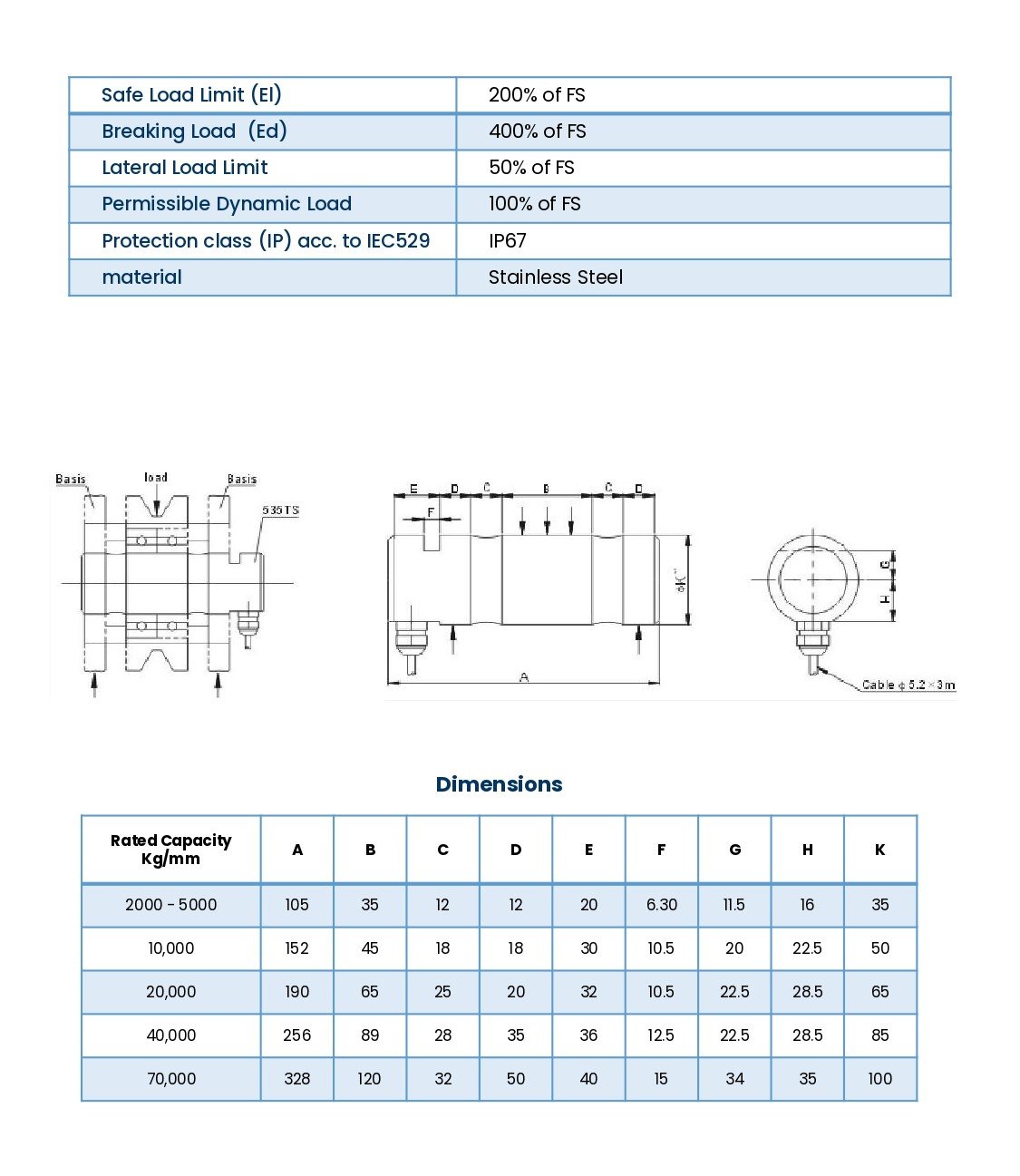

| Safe Load Limit |
200% of FS |
| Breaking Load |
400% of FS |
| Lateral Load Limit |
50% of FS |
| Permissible Dynamic Load |
100% of FS |
| Protection Class |
IP67 |
| Material |
Stainless Steel |
