| Specification | Value |
|---|---|
| Model | SWL - 51 To 15 (H2) |
| Rated Load Capacity | 0 - 1, 2, 3, 5, 10, 15, 20, 25, 30, 40, 50, 60, 100 tonne |
| Rated Output Sensitivity | 2mV/V ± 0.3% |
| Input Resistance (Ω) | 700 ± 10 |
| Output Resistance (Ω) | 700 ± 5 |
| Excitation Voltage (V) | 10 to 15 Volts DC/AC (RMS) |
| Non-Linearity (%FS) | ± 0.1% |
| Hysteresis (%FS) | 0.1% |
| Creep (%FS) | 0.1% |
| Non-Repeatability (%FS) | ± 0.025% |
| Zero Balance (%FS) | 2% |
| Operatable Temperature Range (°C) | -20°C to 65°C |
| Compensated Temperature Range (°C) | 0°C to 55°C |
| Temperature Effect on Zero (%FS/°C) | 0.005% |
| Temperature Effect on Output (%FS/°C) | 0.005% |
| Safe Overload (%FS) | 150% |
| Ultimate Overload (%FS) | 200% |
| Protection Class | IP66 |

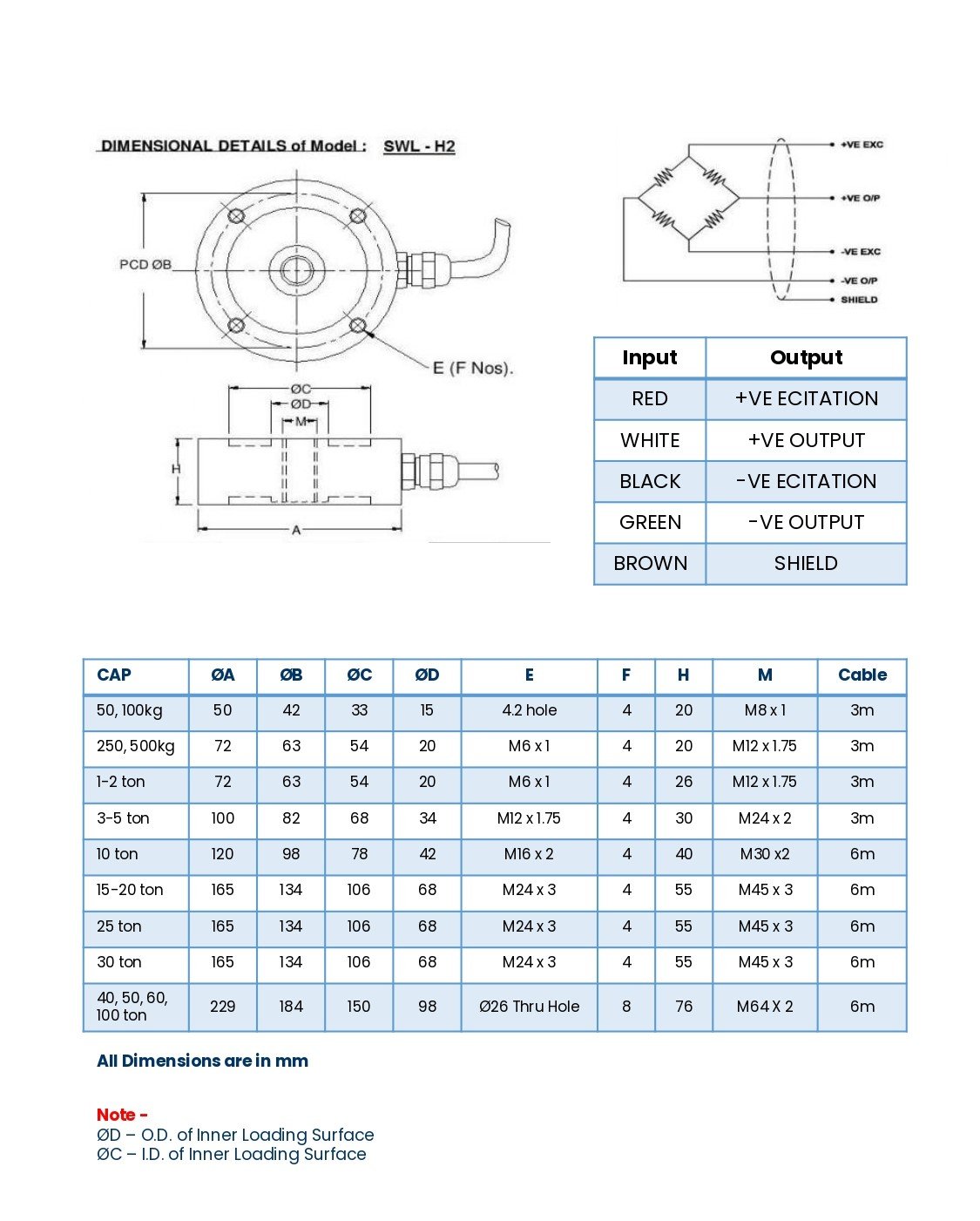

Diagram
