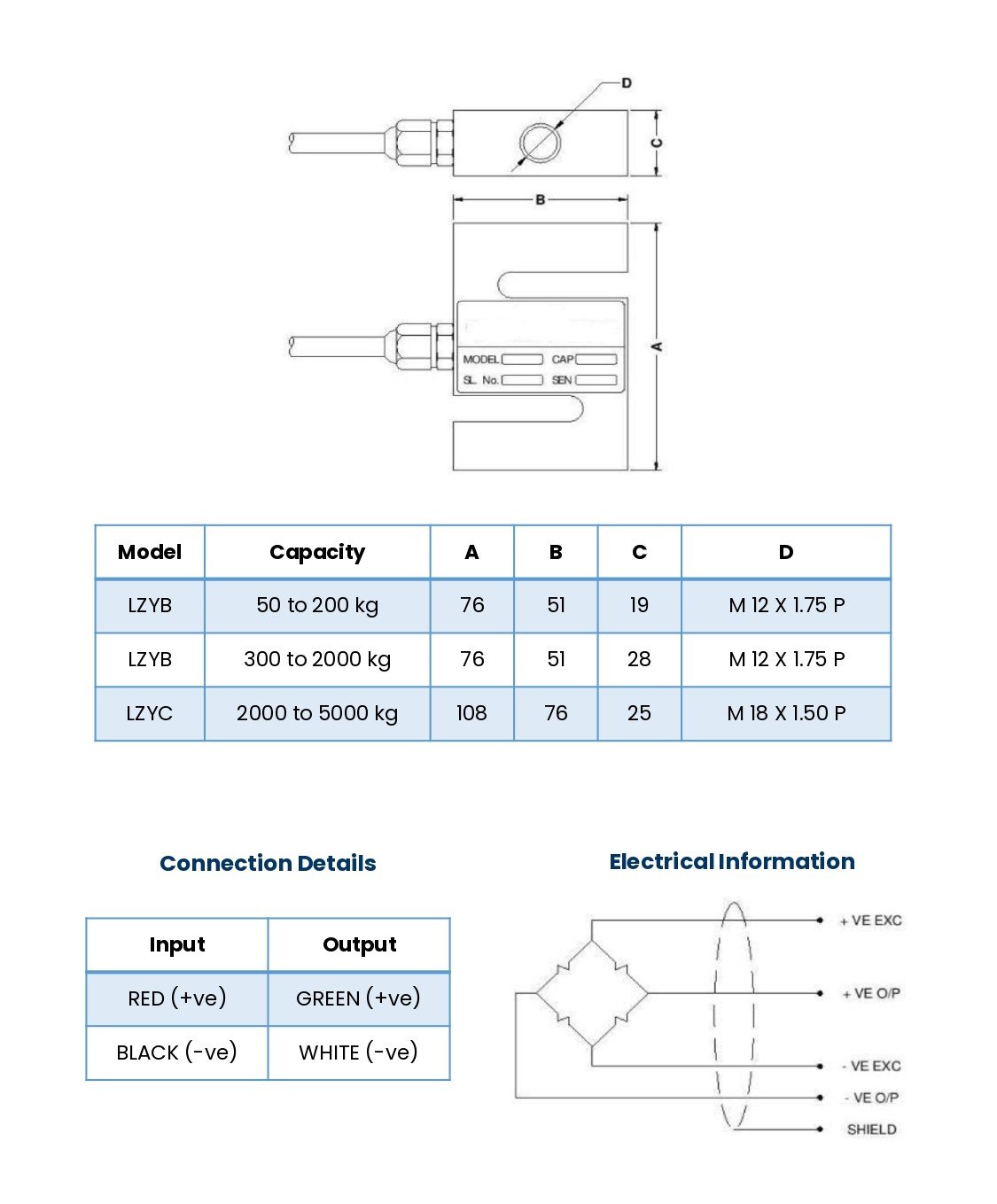

| Model |
LZYB, LSYC |
| Rated Load Capacity |
50, 100, 200, 300, 500, 1000, 2000, 3000, 5000 kgs |
| Rated Output Sensitivity |
2mV/V ±0.25% |
| Input Resistance |
400 ± 25 Ohms |
| Output Resistance |
350 ± 3 Ohms |
| Excitation Voltage |
10 to 15 Volts DC/AC (RMS) |
| Non-Linearity |
± 0.025% of Rated Output |
| Hysteresis |
± 0.025% of Rated Output |
| Creep |
0.025% of Rated Output |
| Non-Repeatability |
± 0.05% of Rated Output |
| Zero Balance |
2% of Rated Output |
| Operatable Temperature Range |
-20°C to 65°C |
| Storage Temperature Range |
-50°C to 85°C |
| Temperature Effect on Zero |
0.005% of Rated Output/°C |
| Temperature Effect on Output |
0.005% of Rated Output /°C |
| Over Load Rating, Safe |
150% of Rated Capacity |
| Power Load Rating (Ultimate) |
200% of Rated Capacity |
| Protection Class |
IP66 |
